Replacement Probes

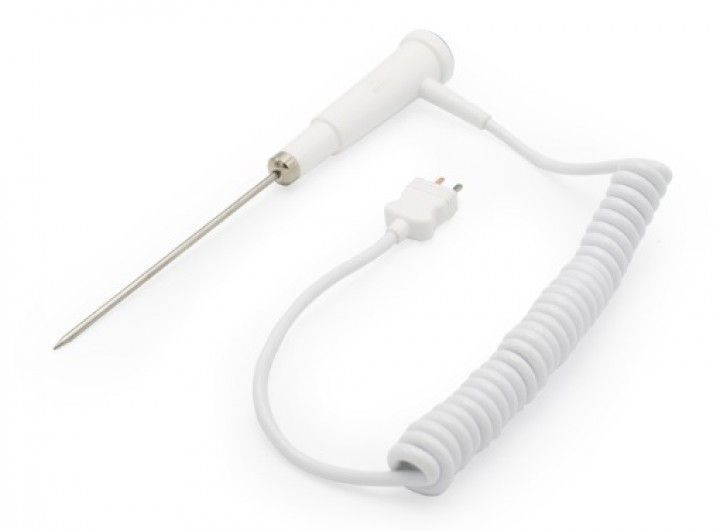

Type T Stainless steel food probe

Type T Stainless Steel Penetration Probe


  • Ideal for a variety of applications
  • 1metre cable
  • Type T penetration probe
  • Stainless Steel
  • 2 Pin connector/plug
  • Fast, accurate temperature measurement


Type T

Type T "Wire" Air Probe


  • Type T thermocouple sensor at tip
  • Flexible wire air probe
  • PTFE twin twisted cable
  • 2 pin connector/plug

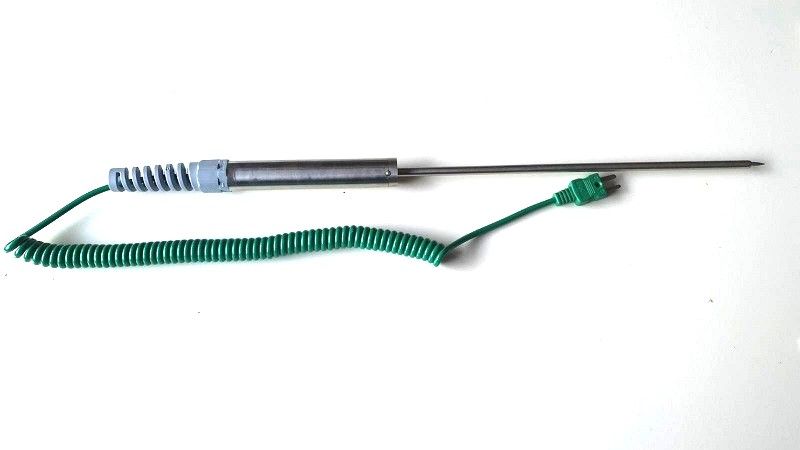

Heavy duty probe to measure the temperature of asphalt or concrete

TP1000 Heavy Duty Steel Probe


  • Heavy duty steel insertion probe
  • Ideal for bitumen/asphalt
  • Tough and robust
  • 250mm x 6mm insertion probe
  • Tapering to 3mm tip for fast response temperature reading
  • Fast, accurate measurements

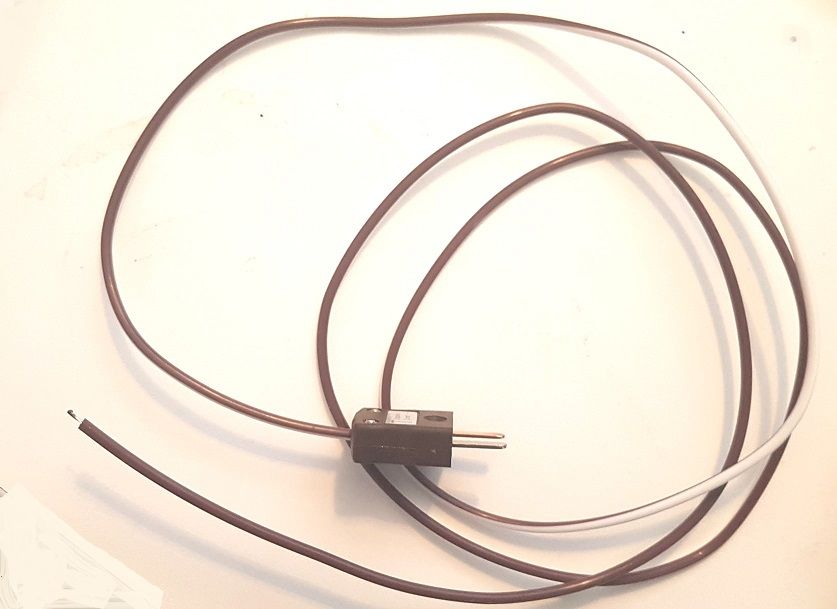

Heavy duty wire Type T Thermocouple probe

Heavy Duty Type T Probe


  • Heavy duty type T wire probe
  • PTFE insulated wire temperature probe
  • Measures air temperature in fridges and freezers
  • Fast Response time
Type T Thermocouple surface probe

Type T Surface Probe


  • Type T temperature probe
  • Flat temperature sensor
  • Ideal for measuring surface temperatures in difficult to reach surfaces e.g. machinery
  • Fast response time
Type T Air Probe

Type T Air Probe

  • Specialised stainless steel air probe
  • Stainless steel shaft with exposed sensor for fast air temperature measurement.
  • Ideal for measuring temperature of air and gases
  • 1 metre cable

HOW TO CARE FOR YOUR TEMPERATURE PROBES

The probe aspect of your thermometer is the most sensitive element of your measurement system.  Probes are generally plug-in or have a permanently connected stainless steel shaft (insertion probe), with handle/cable/plug or a 'wire' type - a small diameter cable with plug (air probe).

Probes will last many years if handled with care and maintained correctly, follow our Tips and Guidance on caring for your probes and check out our advice on how to clean your instruments and probes.

Probe Tips

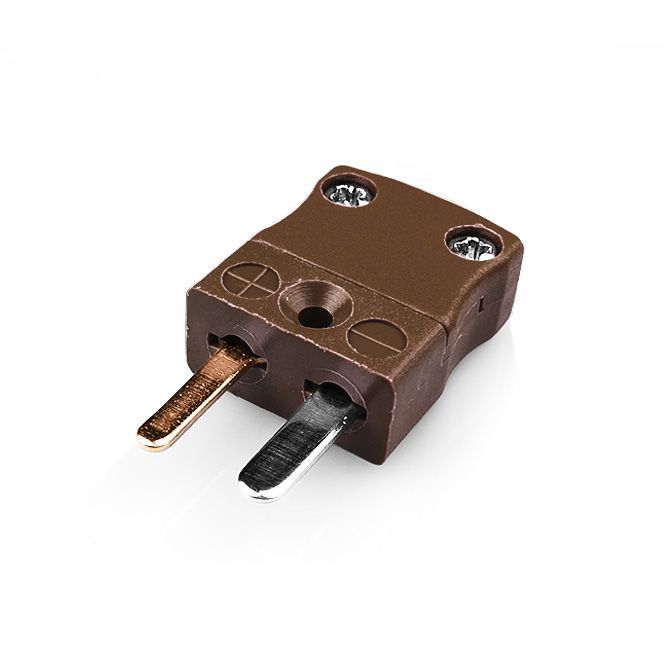

How to line up a Two Pin Plug

Type t pin plug for temperature probe

Some probes have two flat metal pins on the plug end that are different widths.  Ensure these pins line up to their respective holes in the socket.  Once lined up correctly they should slot in with ease.

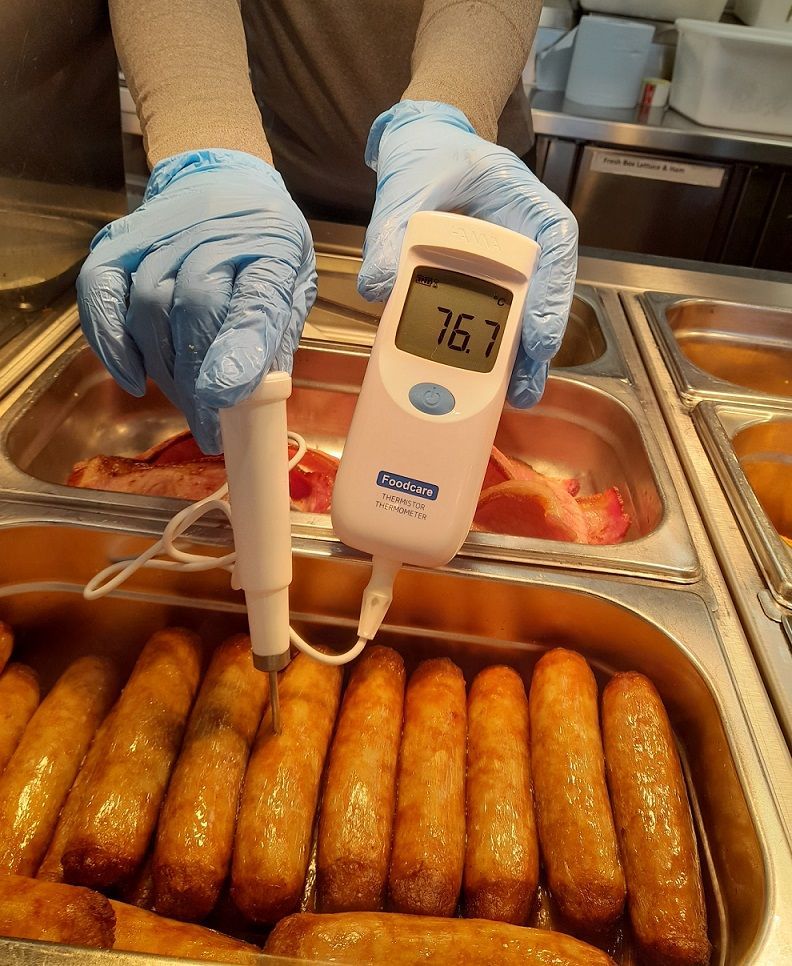

Inserting a thermometer probe correctly

Inserting temperature probe into food correctly

The specified temperature range of your thermometer and probe applies only to the stainless steel insertion shaft/tip.  Please take care to ensure that the cable, handle and plug are not exposed to these high temperatures.

Probe Guidance

How to disconnect the probe correctly

inserting a type t pin probe into a temperature thermometer

Never disconnect the probe by pulling down on the cable.  Always use the Plug to disconnect the probe otherwise, damage can occur e.g. internal wires will become weakened or broken and a replacement/new probe will be required.

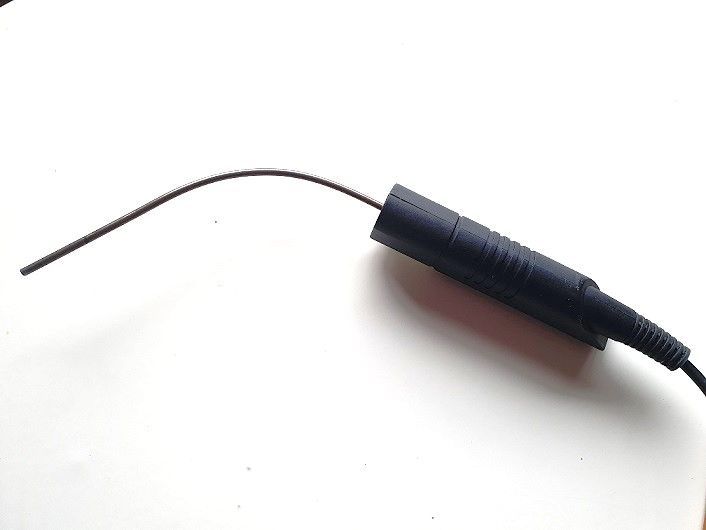

How to prevent damage to your temperature probe

how to prevent damaging a temperature probe

Never attempt to penetrate frozen products for example, with the probe, or use the probe as any kind of lever - damage can occur.

Replacement Probes

Different types of Probes

Techris Systems supply a wide range of replacement probes both for our own range of thermometers and compatible with other brands.   Options include general insertion/immersion probes, air probes, surface probes and heavy duty probes for industrial applications.


To order a replacement probe or to enquire about suitable options please contact us and a member of our team will assist you.
