Data Logger KCC Tracklog Specifications

Parameter Accuracy Measuring Range Resolution
TEMPERATURE ±0.2°C From -40 to 60°C 0.01°C / 0.01°F
RELATIVE HUMIDITY ±1.5% RH** (from 10 to 80% RH and from 10°C to 50°C***) Hysteresis: 0.8% RH at 25°C From 0 to 100% RH 0.01% RH
ATMOSPHERIC PRESSURE ±3 hPa From 800 to 1100 hPa 1 hPa
CO2 CONCENTRATION ±50 ppm ±3% of reading (at 25°C) Temperature dependency: ±1 ppm CO2 /°C From 0 to 5000 ppm 1 ppm

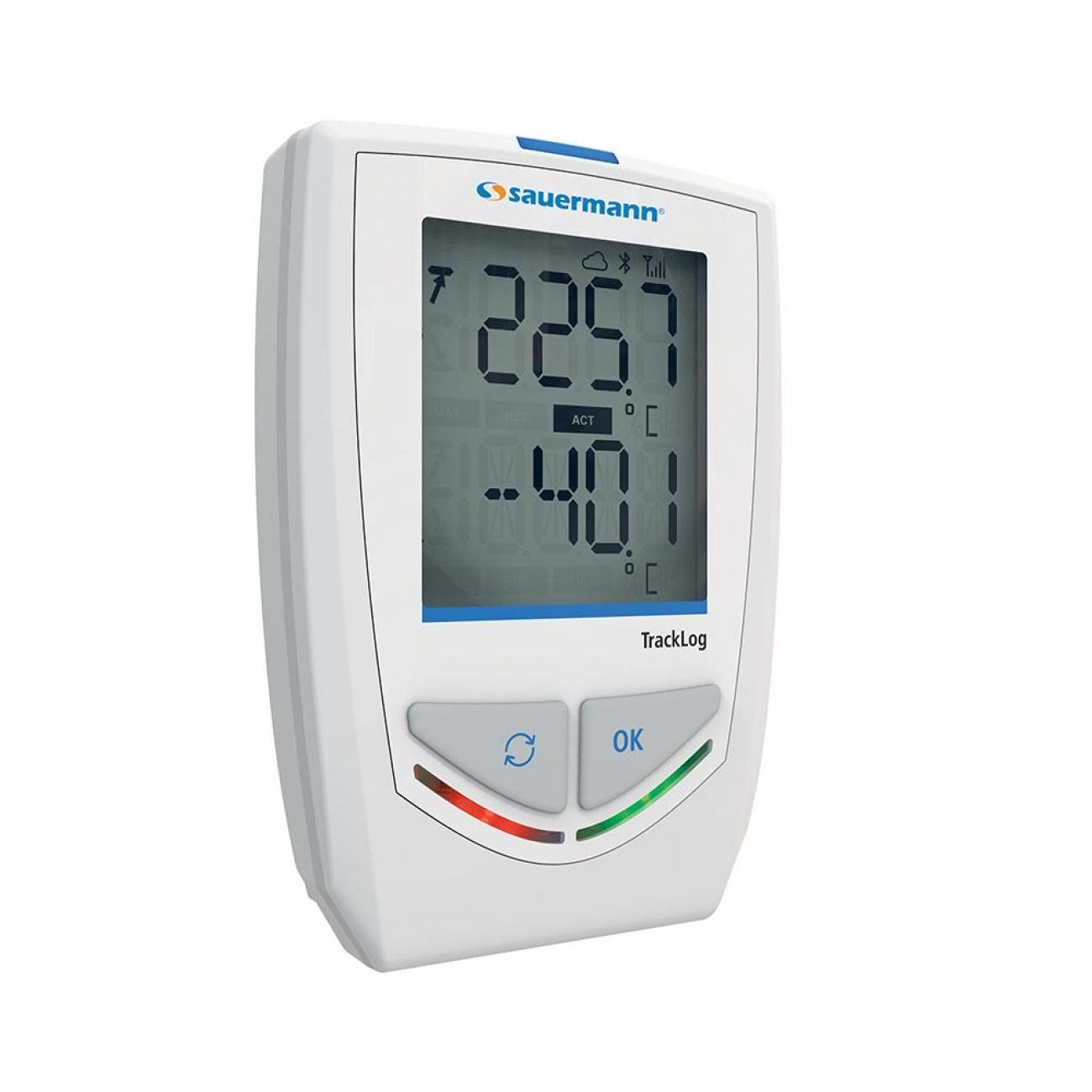

Specifications of the KCC Tracklog data logger
General Features
LoRa® frequency 868 Mhz (Europe)
Display 2-line LCD screen Screen dimensions: 49.5 x 45 mm 2 indication LEDs (red and green)
Type of Sensor Temperature: NTC Humidity: Capacitive sensor Atmospheric pressure: piezoresistive CO2 : NDIR
External Output Micro-USB female connector
Recording Frequency From 1 minute to 24 hours
Power Supply 2x lithium AA 3.6 V batteries (1)
Battery Life 1 year(2)
Protection IP40
Housing Material ABS housing and compatible with food industry
Dimensions 110.2 x 79 x 35.4 mm
Weight 206 g
Operating Temperature From -40 to +60°C(4)
Storage Temperature From -40 to +60°C
Environmental conditions of use Air and neutral gases
Hygrometry: in non-condensing conditions (< 80% RH)
Maximum altitude: 2000 m
Specifications for the KCC Tracklog Data Logger
