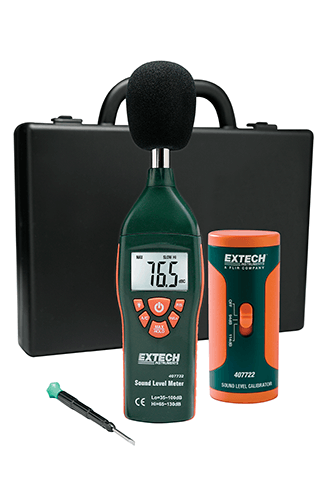

Sound Meter Kit Type 2407732 Kit


Digital sound level meter with 94dB sound calibrator and carrying case

This Type 2 Sound Level Meter Kit meets ANSI and IEC 651 Type 2 standards. Ideal for noise surveys in the workplace, installing fire alarms and speaker systems and enforcing noise ordinances. Measures from 35 to 130 dB in 2 ranges and has an accuracy of ±1.5 dB. Data hold and Max hold functions. Backlit display allows use in dimly lit areas. Includes plastic carrying case for meter and calibrator.


407732 Low/High Range sound Meter KIT

Features:


  • High accuracy meets ANSI and IEC 651 Type 2 standards
  • High and Low measuring ranges: 35 to 100dB (low) and 65 to 130dB (high)
  • Data Hold and Max Hold functions
  • Backlit LCD display to view in dimly lit area
  • Includes 407722 - 1kHz 94dB sound calibrator (±5% accuracy)
  • Includes plastic carrying case for meter and calibrator


Specifications Range
Measurement Range Low: 35 to 100dB, High: 65 to 130dB
Basic Accuracy ±1.5dB (Type 2)
WEighting A and C
Response Time Fast /Slow
Condenser Microphone 0.5" (12.7mm)
Dimensions 8.2x2.1x1.25" (210x55x32mm)
Weight 8.1oz (230g)

Accessories:


407766: 94dB/114dB Sound Calibrator 1kHz Professional Calibrator for 0.5" or 1.0" Microphones

This 1kHz 94/114dB professional sound calibrator is for 0.5 in. or 1 in. microphones. Calibrates and verifies sound level meter operation. Level position switch to select 94dB or 114dB with power on LED indicator light. Durable die-cast aluminum housing generates a 1kHz sine wave at 94dB/114dB to an accuracy of 5% (frequency) and ±0.5dB (94dB)/±1.0dB (114dB). Meets IEC standard 60942 1997-11. Comes complete with two 9V batteries, carrying case and screwdriver



407744: 94/114dB Sound Calibrator 1kHz Professional Calibrator for 0.5" or 1.0" Microphones

his 1kHz, 94dB professional sound calibrator for 0.5" or 1.0" microphones calibrates and verifies sound level meter operation. Battery test position with battery status LED indicates if battery is good. Durable die-cast aluminum housing generates a 1kHz sine wave at 94dB to an accuracy of 5% (frequency) and ±0.5dB (94dB). Meets IEC standard 60942 1997-11. Complete with two 9V batteries, carrying case, and screwdriver.



sound calibrator
