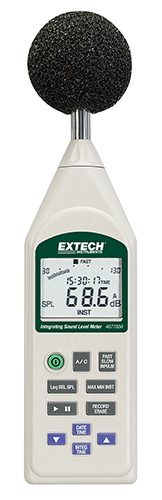

Integrating Sound Level Meter with USB 407780A
Leq and SEL measurements with built-in datalogger and PC interface
The 407780A is an integrating sound level meter with USB. The meter takes Leq and SEL measurements with A and C frequency weighting options. The meter has a built in datalogger that records up to 32,000 records and PC interface to easily access your logged information. Its 4 digit multifunction LCD has an analog bargraph and digital reading. With the 407780A you can program integration times, utilize impulse, fast or slow response settings and benefit from alarm features. Complete with windscreen, adjustment screwdriver, USB cable, Windows compatible software, battery, one year warranty and case.
Features:
- 4-digit multifunction LCD with analog bargraph
- Precise linearity over wide range (100dB)
- Display modes: SPL, SPL MIN/MAX, SEL, and Leq
- Programmable integrating time
- A and C Frequency weighting
- Impulse/Fast/Slow response settings
- Datalogging function records up to 32,000 records
- Real time calendar/clock
- Analog and alarm output features can be used to connect with Frequency analyzers, chart recorders, external dataloggers, and sound level alarms
- Built-in USB interface with included Windows® datalogging software
- Tripod mount
- Meets IEC 61672-1, 60651/60804 Type 2 and ANSI S1.4 Type 2 specifi cations
- Complete with windscreen, adjustment screwdriver, USB cable, Windows® compatible software, battery, and case
| Specifications | Range |
|---|---|
| Measurement Range | 30 to 130dB |
| Basic Accuracy | ±1.5dB |
| Weighting (A & C) | Yes |
| Response Time (Fast/Slow) | Yes |
| Condenser Microphone | Detachable 0.5" (12.7mm) |
| Analog Output | AC/DC |
| PC Interface | Yes |
| Datalogging | 32,000 Records |
| Dimensions/Weight | 10.4x2.8x0.8" (265x72x21mm)/10.9oz (310g) |
Accessories:

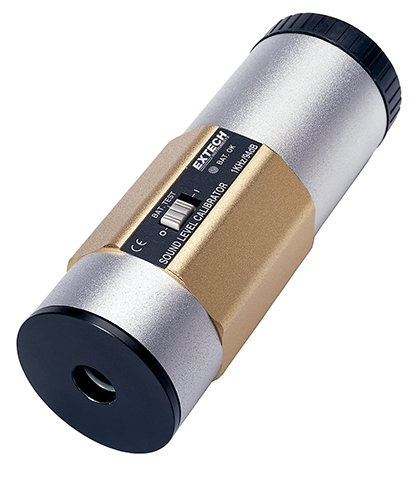

407744: 94dB Sound Calibrator (1kHz Professional Calibrator for 0.5" or 1.0" Microphones)
This 1kHz, 94dB professional sound calibrator for 0.5" or 1.0" microphones calibrates and verifies sound level meter operation. Battery test position with battery status LED indicates if battery is good. Durable die-cast aluminum housing generates a 1kHz sine wave at 94dB to an accuracy of 5% (frequency) and ±0.5dB (94dB). Meets IEC standard 60942 1997-11. Complete with two 9V batteries, carrying case, and screwdriver.
407766: 94/114dB Sound Calibrator
1kHz Professional Calibrator for 0.5" or 1.0" Microphones
This 1kHz 94/114dB professional sound calibrator is for 0.5 in. or 1 in. microphones. Calibrates and verifies sound level meter operation. Level position switch to select 94dB or 114dB with power on LED indicator light. Durable die-cast aluminum housing generates a 1kHz sine wave at 94dB/114dB to an accuracy of 5% (frequency) and ±0.5dB (94dB)/±1.0dB (114dB). Meets IEC standard 60942 1997-11. Comes complete with two 9V batteries, carrying case and screwdriver.
