HI2020 Edge Hybrid Multiparameter

DO Meter

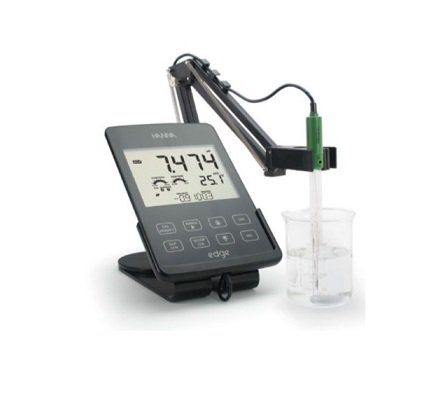

The smart, slim-line design means Edge can be used as a hand held, wall mount or bench top meter. Combined with sophisticated technology, it delivers fast accurate results with laboratory grade precision whichever format you choose to use.



Cutting Edge Design

Cutting-edge design, capacitive touch keypad and an intuitive user interface are just some of the attributes that make this meter stand out.

pH is measured through a unique digital electrode. Connected via an easy plug-in 3.5mm connector, this smart electrode enables Edge to automatically recognise and store sensor type, ID and calibration information.

Programmed for basic and advanced modes, Edge offers simplified screen features for routine measurements or detailed data display. It warns users if the electrode is not clean or if buffers are contaminated during calibration using the CAL-CHECK feature. What's more, Edge will also warn you if the pH bulb is cracked or if the junction of the electrode is compromised.


Dissolved Oxygen DO Meters HI2020

Key features

  • capacitive touch keypad
  • large 140mm LCD display with clear full text readout
  • digital smart electrode enables Edge to automatically recognise and store sensor type, ID and calibration information
  • range: -2.00 to 16.00pH and -2.000 to 16.000pH
  • resolution: 0.01pH and 0.001pH
  • accuracy: +/- 0.01pH and +/- 0.002pH
  • slim, lightweight design means Edge can be hand-held, wall-mounted or used as a bench meter


HI2020 DO Meter

PC - Download test results to a computer directly from equipment via a USB port.

HI2020 Hybrid DO Meter

3.5 Connection – Phono plug electrode connection used on HANNA smart Edge electrodes. Provides a secure, easy-to-use connection.

Specifications
Range - pH basic mode: -2.00 to 16.00 pH, -2.000 to 16.000 pH; standard mode: ±1000.0 mV for pH
Resolution pH 0.01 pH; 0.001 pH
mV 0.1 mV
Accuracy pH ±0.01 pH; ±0.002 pH
Accuracy mV ±0.2 mV
pH Calibration 5 in standard mode; 3 in basic mode
Temperature Compensation Automatic, -20 to 120°C
pH Electrode HI 11310, double junction, refillable pH electrode with temperature sensor (included)
Environment 0 to 50°C ; RH max 95%
Dimensions 202 x 140 x 12.7 mm
Weight 250 g
