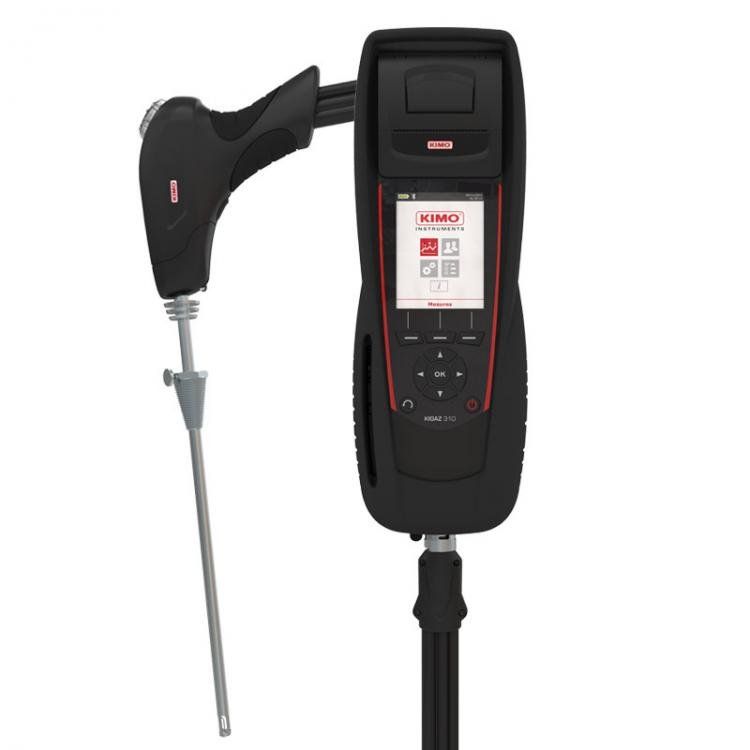

KIGAZ 310 Combustion Gas Analyser



The KIGAZ 310 is the most comprehensive gas analyser in the range and is configurable to your requirements with four inter-changeable sensors. It accurately measures the main combustion data for domestic boilers up to 400 kW.  Ideal for efficiency monitoring and for limiting emissions from all types of boilers.



 Features

  • Up to 4 interchangeable sensors: O2LV/CO-H2/NO/NO2/SO2/CH4
  • Long life O2 sensor and CO dilution up to 5%
  • 2 thermocouple K inputs and changeable probe lengths
  • Auto-zero in the flue
  • Integrated printer, mobile application and supplied with calibration certificate
  • 15 programmed combustibles and LIGAZ-2 software (LOGAZ-2 optional)


Gas flue combustion Analyser
Measuring Ranges
Longlife CO2 0.00 % ... 21.00 %
CO (with H2 compensation) 0.00 ppm ... 8000.00 ppm
NO 0.00 ppm ... 5000.00 ppm
Low Range NO 0.00 ppm ... 500.00 ppm
NO2 0.00 ppm ... 1000.00 ppm
SO2 0.00 ppm ... 5000.00 ppm
CH4 0.00 ppm ... 10000.00 ppm
CH4 0.00 %vol ... 1.00 %vol
CH4 0.00 %LEL ... 20.00 %LEL
DHW Temperature -200.00 °C ... 1300.00 °C
Draft -1000.00 Pa ... 1000.00 Pa
Technical Details
Parameters Gas Detection
Displays Graphical Display
IP Protection IP 40
Battery Life 10 hours
Standards 2004/108/EC NF EN 50379-1 NF EN 50379-2 2006/95/CE Basse tension 2011/65/EU RoHS II 2012/19/UE DEEE
Wireless connection 1
Power Supply Battery Li-ion 6V 1.5A
USB Yes
Sensors CH4 CO-H2 Long-life O2 NO NO2 SO2
Auto Zero Yes
Printer Built in
Sensor Protection CO dilution
Combustion condensate Built-in water trap with max level alarm
Mobile Application KIGAZ Mobile

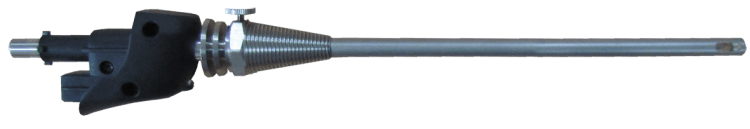

Gas analyser probe

Flue Gas Probe

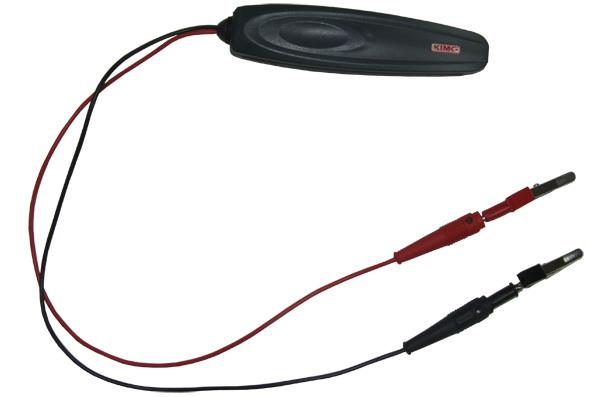

ionisation probe for gas analyser

Ionisation Probe

Gas leak detection probe

Gas Leak Detection Probe

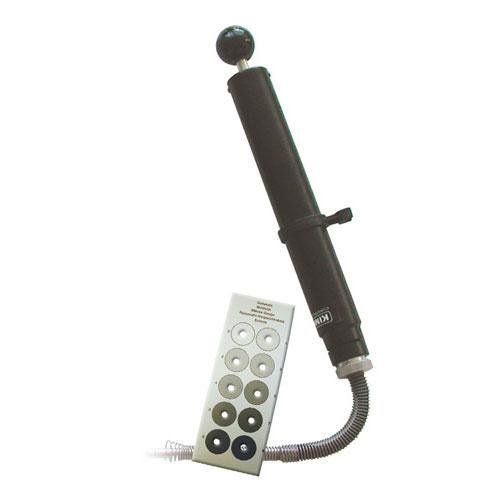

Gas analyser opacity pump to analyse smoke samples

Accessories

opacity pumps provide analyses of smoke samples. It provides an opacity index between 0 and 9.

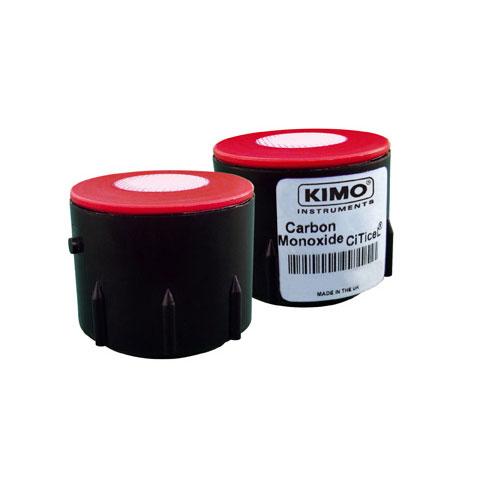

interchangeable sensors

Accessories

Interchangeable Sensors:

O2 long life : 0-21 %

CO-H2 : 0-8,000 ppm

NO : 0-4,000 ppm and NO low range : 0-500 ppm

NO2 : 0-1,000 pp

SO2 : 0-5,000 ppm

CH4 : 0-10,000 ppm

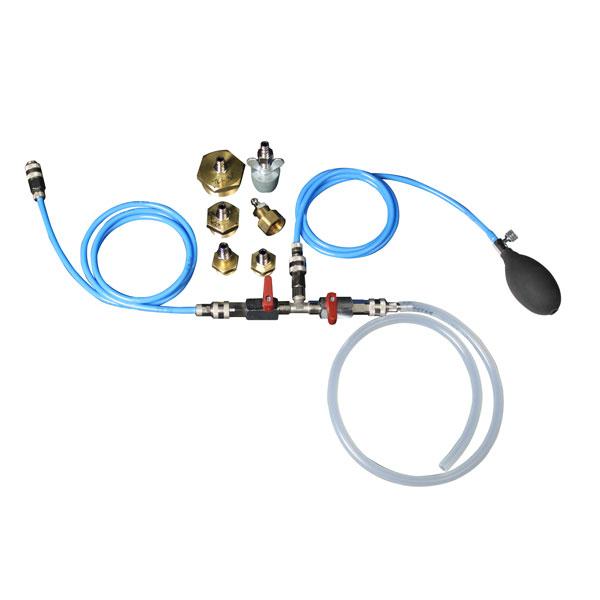

gas network tightness kit KEG

Accessories

Gas Network Tightness Kit KEG

  • Two cone-shaped tightness connections
  • A pressure bulb
  • Connections for direct measurement on ducts and meter (male-bottle 6-20, 10-32, 1/2G, M20x1.5), adapter and tubes

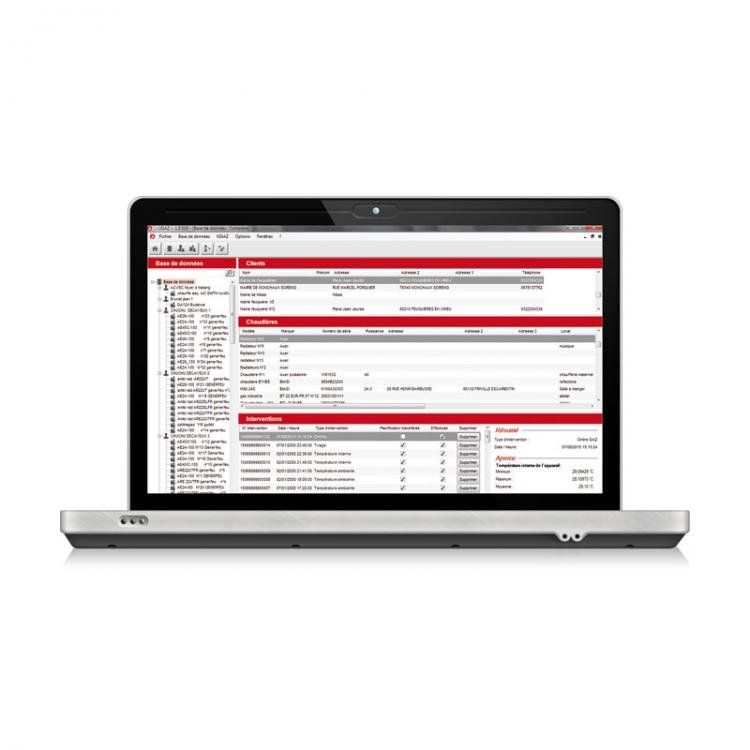

software for the Kigaz gas analyser

SOFTWARE

LIGAZ-2 is configuration software for Kigaz combustion gas analysers.

  • Database creation (customers, boilers and inspections)
  • Report Printing
Data processing software for Kigaz combustion gas analyser

SOFTWARE

LOGAZ-2 is data processing software for Kigaz combustion gas analysers

  • Database creation (customers, boilers and inspections)
  • Inspections downloading and printing
  • Customizable reports creation
  • Inspection planning
  • On-site service contacts management (operator planning, customer care)
  • Real-time measurements, visualization and recording
