LV50 Vane Thermo-Anemometer – Reliable Air Velocity & Temperature Measurement in the Field
The LV50 Thermo-Anemometer is a compact, user-friendly instrument designed for accurate measurement of air velocity, airflow direction, and temperature using integrated vane probe technology. Unlike hot wire models, the LV50’s built-in vane sensor offers increased durability and stability, making it ideal for HVAC professionals, technicians, and anyone needing fast and consistent airflow diagnostics on-site.
Designed for Real-World HVAC & Environmental Testing
Whether you're assessing airflow from vents, checking system performance in ducts, or monitoring room ventilation, the LV50 delivers dependable data with ease. Its straightforward operation, combined with robust measurement capability, makes it perfect for:
- HVAC maintenance and commissioning
- Air vent and duct airflow assessment
- Room comfort and airflow checks
- Industrial and environmental airflow surveys
Key Features of the LV50 Thermo-Anemometer
- ✅ Air Velocity Range: 0.3 to 35 m/s
- ✅ Temperature Range: -20 to +80°C
- ✅ Integrated Vane Probe – No external probes required
- ✅ Hold Function – Freeze current readings for review
- ✅ Units Supported: °C, °F, m/s, km/h, ft/min (fpm)
- ✅ Auto Shut-Off: Powers down after 20 minutes to save battery
- ✅ Adjustment Certificate Included – Ensures accuracy
- ✅ Simple, One-Handed Operation – Lightweight and ergonomic
Applications
- HVAC engineers balancing and verifying airflow
- Facility managers monitoring room ventilation
- Environmental consultants evaluating airflow in workspaces
- Lab & Cleanroom professionals checking airflow stability
- Industrial maintenance of fans and ventilation systems
Order the LV50 Vane Anemometer Today
Compact, durable, and accurate—the LV50 Thermo-Anemometer is the perfect tool for professionals who need to measure air velocity and temperature quickly and reliably. Whether you're in HVAC, facilities, or environmental assessment, this instrument is ready to perform. Contact Techris Systems now to get fast, accurate airflow diagnostics in the palm of your hand.
| Parameters | Temperature | Air Velocity |
|---|---|---|
| Measuring Units | °C, °F | m/s, fpm, km/h |
| Measuring Range | From -20 to 80 °C | From 0.3 to 35 m/s |
| Accuracy | ±0.4% of reading ±0.3 °C | From 0.3 to 3 m/s: ±3% of reading ±0.1 m/s From 3.1 to 35 m/s: ±1% of reading ±0.3 m/s |
| Resolution | 0.1 °C | From 0.3 to 3 m/s: 0.01 m/s. From 3.1 to 35 m/s: 0.1 m/s |
| Response Time | T63 = 5 s | T63 = 4 s |
| Measuring Elements | NTC | Hall effect sensor |
| More Information | |
|---|---|
| Temperature Range | -20°C ... 80°C |
| Velocity | 0.30 m/s ... 35.00 m/s |
| Display | 2-line display |
| IP Protection | IP 54 |
| Battery Life | 70 hours |
| Battery type | 4 batteries AAA LR03 1.5 V |
| Standards | 2011/65/EU RoHS II |
| 2012/19/EU WEEE | |
| 2014/30/EU EMC | |
| 2014/35/EU Low Voltage | |
| Anemometer Type | Vane |
| Size | 106.1 x 45 x 183.3mm |
| Weight | 200g |
| Operating Temp | Min 0°C Max 50 °C |

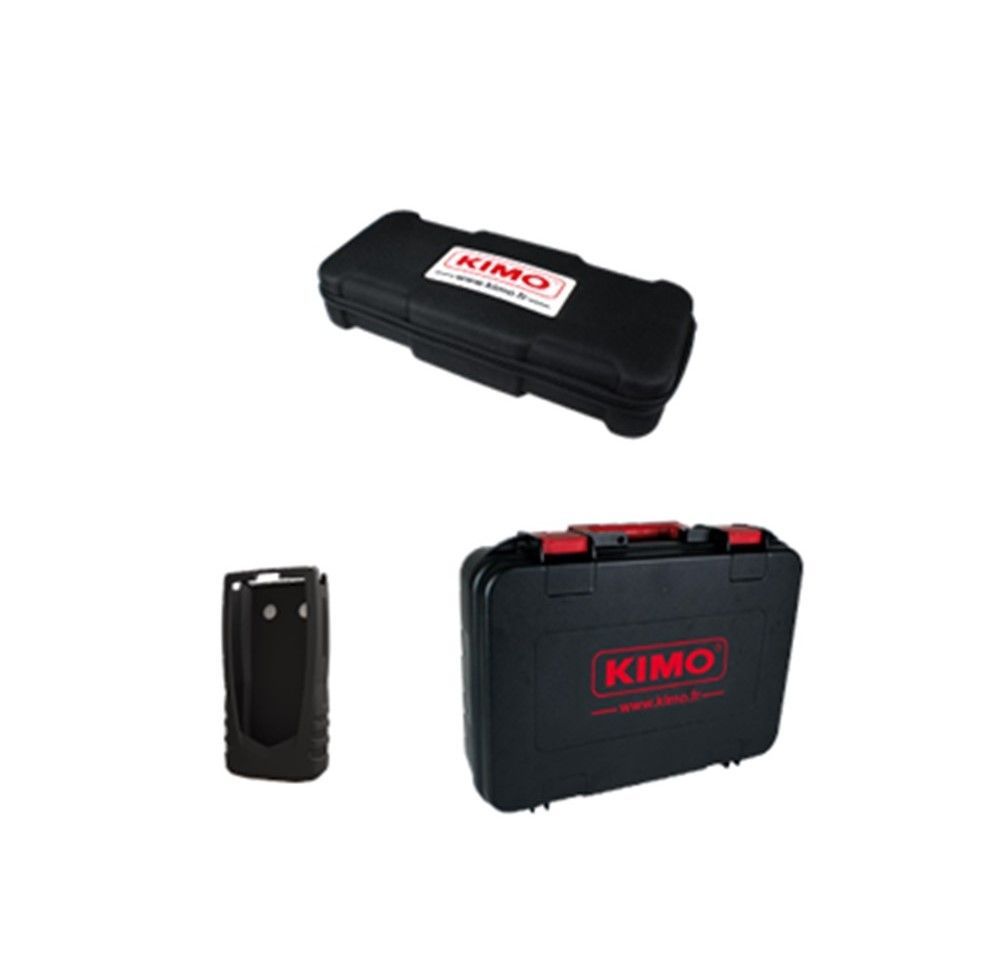

Accessories
MT 51 Soft Transport Case
CQ 15 Magnetic protective housing
