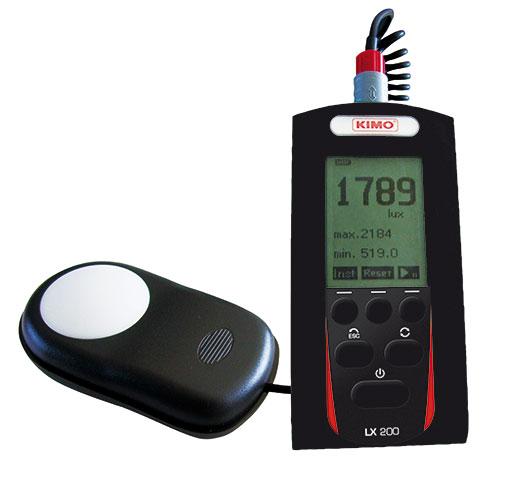

LX200 Luxmeter
Illuminance Measurement in Lux of fc
The LX 100 handheld luxmeter is designed to measure illuminance. LX200 hand-held luxmeter, is specially designed to illuminance measurement. It allows storage of datasets for
processing on a computer via the LLX200 software.
Instantaneous illuminance
Displaying of instantaneous / maximum / minimum values.
Relative illuminance
Allows a relative measurement to a reference point to quantify a light input or an illuminance decrease.
Evolution of illuminance according to weather conditions
Storage of temporal evolution of illuminance for the follow up of environment conditions.
Cartography of illuminance – Spatial representation
Coloured representation according levels obtained for printing of report (on a computer such as a PC).
Uniformity
Calculation of the min / ave ratio for determination of illuminance uniformity at workstation according to standards.
Measuring Units:
kfc, fc, lux, klx

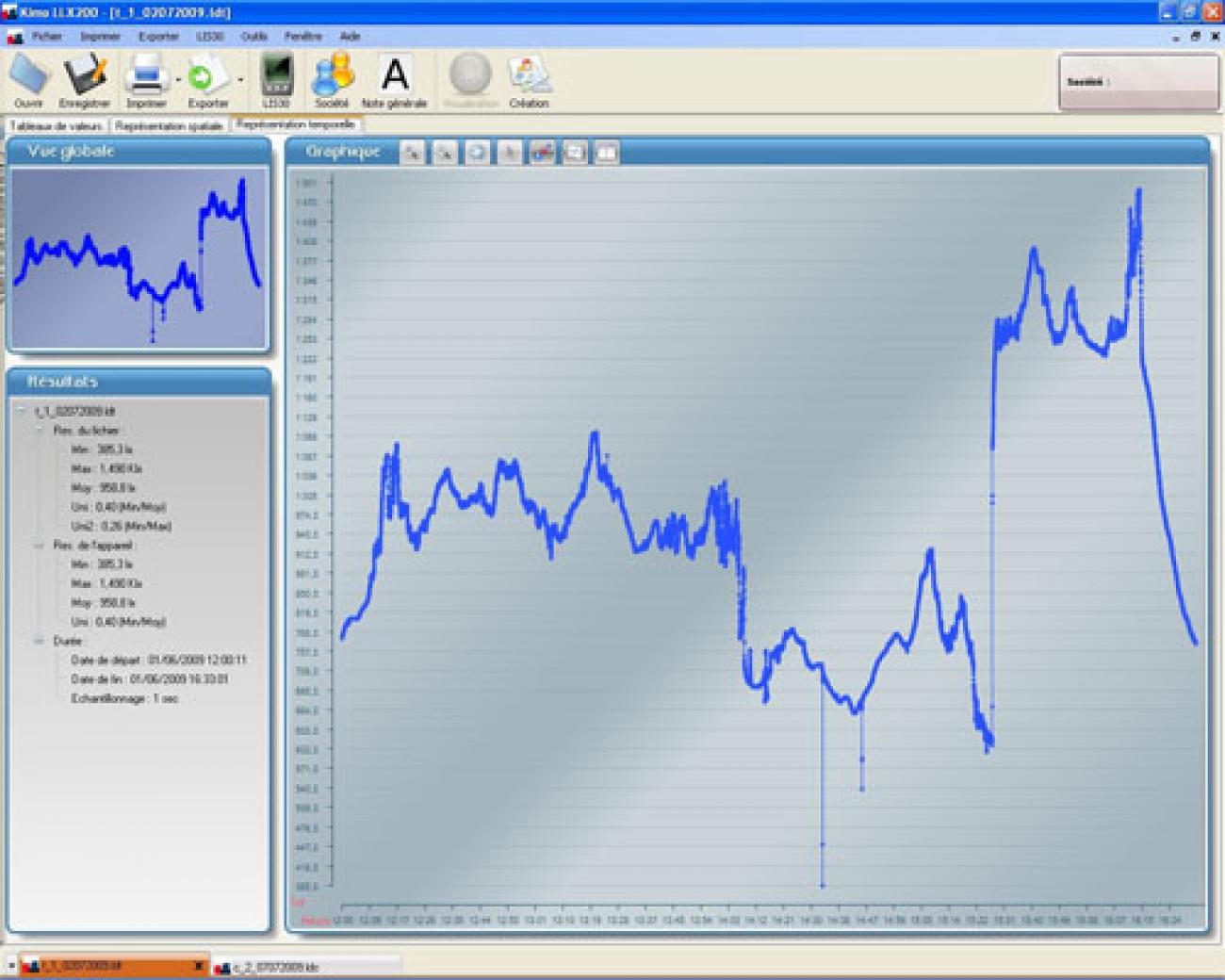

LLX 200 Software
Software for data processing and printing reports for luxmeters instruments.
- Visualization and results of different measurement modes: Uniformity, temporal, and mapping
- Following temporal evolution of illuminance of a workstation or a journey
- Data recovery and creation text files

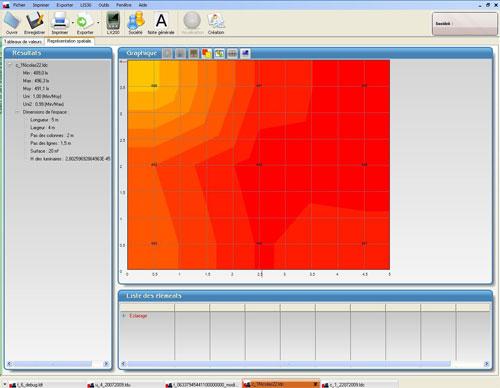

- Illuminance mapping with colored nuances of workstations (sport facilities)
- Formatting and editing of measurement report
- Zoom function for more precise study of a period
Specifications | Range |
---|---|
Illuminance | 0.00 lux ... 200000.00 lux |
0.00 fc ... 18585.00 fc | |
Display | Graphical display |
Battery Life | 72 hours |
Power Supply | 3 batteries 1.5V type LR3-AAA |
Standards | 2011/65/EU RoHS II |
2012/19/EU WEEE | |
2014/30/EU EMC | |
2014/35/EU Low Voltage | |
Probe Type | Built in probe |
Operating Temp | Min 0.00 °C Max 50.00 °C |
Size | 120mm x 58mm x 34mmx |
Weight | 185g |
