SD750 3 channel pressure data logger manometer

Features:



  • Triple LCD simultaneously displays 3 pressure channels
  • Up to 5000psi with 4-20mA output
  • 4-20mA input with readout in 9 units of measure
  • Datalogger date/time stamps and stores readings on an SD card in Excel® format
  • User-selectable data sampling rate: 5, 10, 30, 60, 120, 300, 600 seconds or auto
  • Complete with six AAA batteries, SD memory card, universal AC adaptor, three connectors, and mounting bracket
  • Transducers sold separately




SD750: 3-Channel Pressure Datalogger


Records data to SD card in Excel® format


This 3-Channel Pressure Data logger allows technicians to easily monitor and record pressure levels from three sources using one meter instead of three. Applications include pressure measurements from hydraulic, pneumatic, air compressor and process gas systems, as well as other industrial applications. Complete with six AAA batteries, 2G SD card, universal AC adaptor, 3 connectors, and mounting bracket.



The logger features a large triple LCD display and records data on an SD card in an Excel®-ready format for easy transfer to a PC for analysis, trending, and archiving.

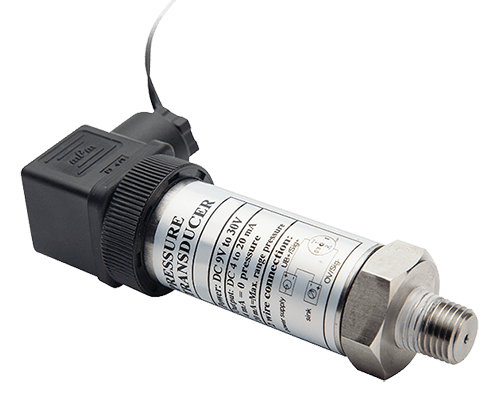

Universal Pressure Transducers available in three ranges (30psi, 150psi, and 300psi). Purchase the transducer with the range that best fits your application.

Specifications 30psi 150psi 300psi
bar 0.002 to 2 bar 0.01 to 10 bar 0.02 to 20 bar
PSi 0.02 to 30 psi 0.2 to 150 psi 0.2 to 300 psi
kg/cm² 0.002 to 2.040 kg/cm² 0.01 to 10.19 kg/cm² 0.02 to 20.40 kg/cm²
mmHg 2 to 1500 mmHg 10 to 7500 mmHg 20 to 15000 mmHg
inHg 0.05 to 59.05 inHg 0.2 to 295.2 inHg 0.5 to 590.5 inHg
Kpa 0.2 to 200.0 kPa 1 to 1000 kPa 2 to 2000 kPa
inH₂O 1 to 802 inH₂O 5 to 4010 inH₂O 10 to 8020 inH₂O
mH₂O 0.02 to 20.40 mH₂O 0.1 to 101.9 mH₂O 0.2 to 204.0 mH₂O
inHg 0.05 to 59.05 inHg 0.2 to 295.2 inHg 0.5 to 590.5 inHg
atm 0.002 to 1.974 atm 0.01 to 9.87 atm 0.02 to 19.74 atm
Data logging Datalogs using 4GB SD memory card
Dims/Weight 0.59 lbs (265g)
