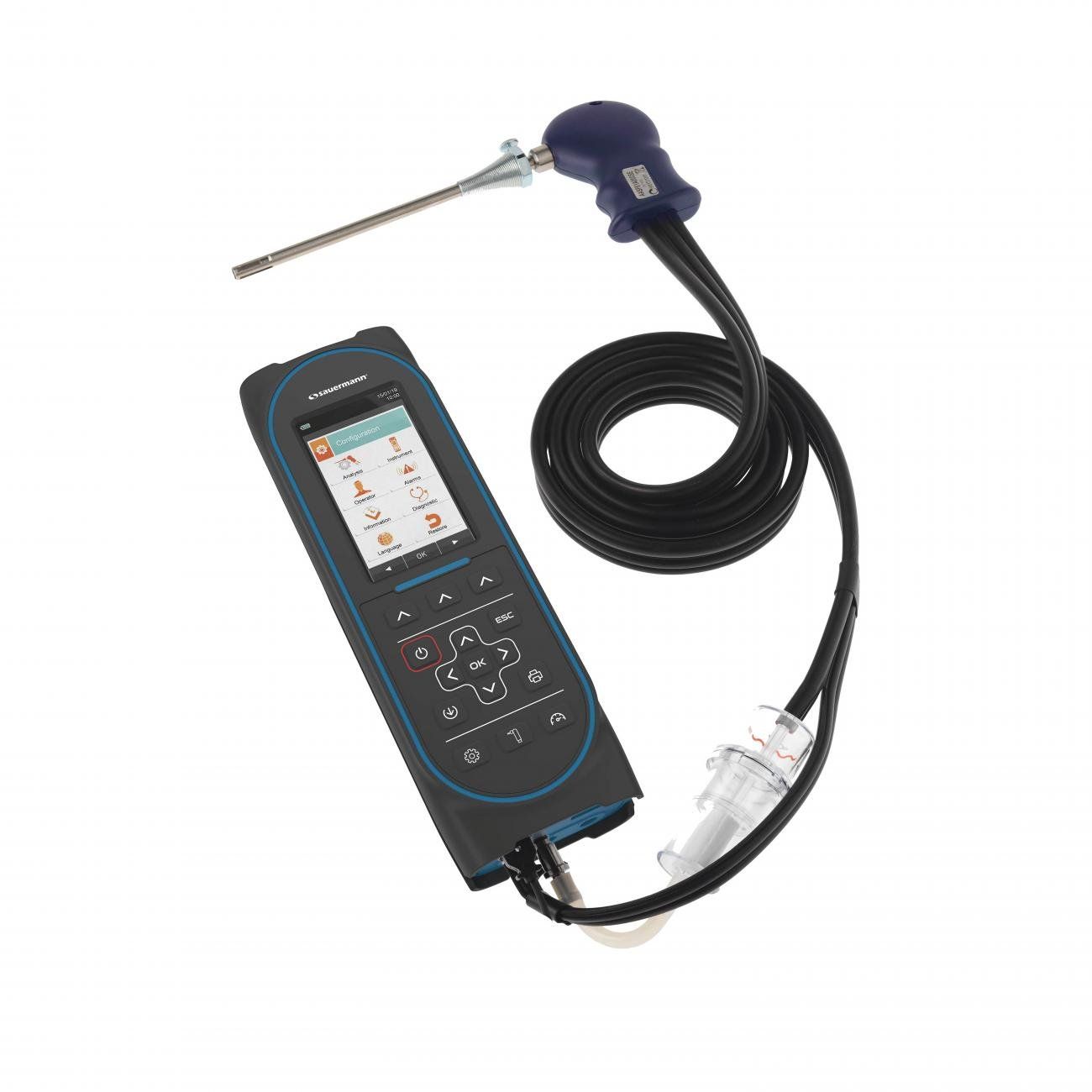

Si-CA 220 Combustion Analyser
Combustion gas analysers are multifunction instruments used to ensure that boilers and heaters are operating efficiently. They not only measure the level of gas emitted but also pressure and temperature. The Si-CA220 Gas Combustion Analyser is an accurate, reliable, robust and fast and allows Emissions Monitoring of Boilers, Engines and Other Combustion Applications such as indoor air quality (measurement of VOCs).
Features
- NO, O2, CO, NO2, SO2, CxHy (HC)
- Auto-Zero in the Flue
- Full Colour Graphic Display
- Field Replaceable Sensors
- PC Software with Bluetooth®
- iOS and Android Mobile Applications
Supplied with:
4 Different sensors according to kits: please refer to the technical data sheet
1 Long Lasting Rechargeable Battery & AC Charger
1 Gas Sampling Probe & Hose
1 Water Trap with Filter Cartridge
1 Magnetic Protective Housing
1 PC Software & USB Cable
1 Calibration certificate
1 Carrying Case
1 Quick Start Guide
| Specifications | |
|---|---|
| Units | °C, %, %vol, ppm, hPa |
| Measuring Ranges | |
| O2 | 0.00 % ... 25.00 % |
| CO-H2 compensated w/ built-in NOx filter | 0.00 ppm ... 8000.00 ppm |
| CO2 | 0.00 % ... 99.90 % |
| NO | 0.00 ppm ... 5000.00 ppm |
| NO2 | 0.00 ppm ... 1000.00 ppm |
| NOx | Built-in probe |
| SO2 | 0.00 ppm ... 5000.00 ppm |
| CxHy | 0.00 %vol ... 5.00 %vol |
| Ambient Temperature | -20.00 °C ... 1250.00 °C |
| Gas Temperature | -20.00 °C ... 1250.00 °C |
| Differential Temperature | 0.00 °C ... 1250.00 °C |
| Pressure/Draft | -10.00 hPa ... 200.00 hPa |
| Excess Air | 0.00 % ... 850.00 % |
| Efficiency | 0.00 % ... 100.00 % |
| Efficiency Condensation | 0.00 % ... 120.00 % |
| Dimensions | 271mm x92mm x 66 x 900mm |
| Min Op Temperature | -5.00 °C |
| Max Op Temperature | 45.00 °C |
| Technical Details | |
|---|---|
| Parameters | Gas analysis CO CO2 O2 Temperature |
| Displays | Color graphical display |
| IP Protection | IP 42 |
| Battery Life | 12 hours |
| Standards | NF EN 50379-1 NF EN 50379-2 2011/65/EU RoHS II 2012/19/UE DEEE 2014/30 UE EMC 2014/35/EU Low Voltage |
| Bluetooth | 1 |
| Power Supply | 3.7 V, 5200 mAh Li-Ion battery pack with internal protection circuit |
| USB | 3.7 V, 5200 mAh Li-Ion battery pack with internal protection circuit |
| Sensors | CO CO-H2 NO NO2 O2 SO2 |
| CxHy | 0.00 %vol ... 5.00 %vol |
| Auto Zero | Yes |
| Sensor Protection | CO dilution |
| Combustion condensate | Remote |

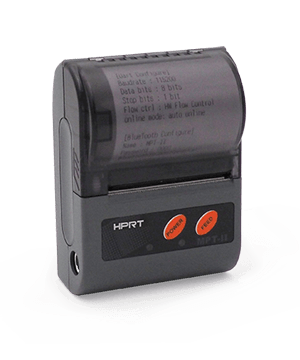

Ref: MPT-II/Si-CA 8500 Printer
Silent, fast & energy-efficient, the MPT-II/Si-CA 8500 thermal printer allows to print clearly and efficiently. Small and light, the MPT-II/Si-CA 8500 Bluetooth® printer is easy to transport

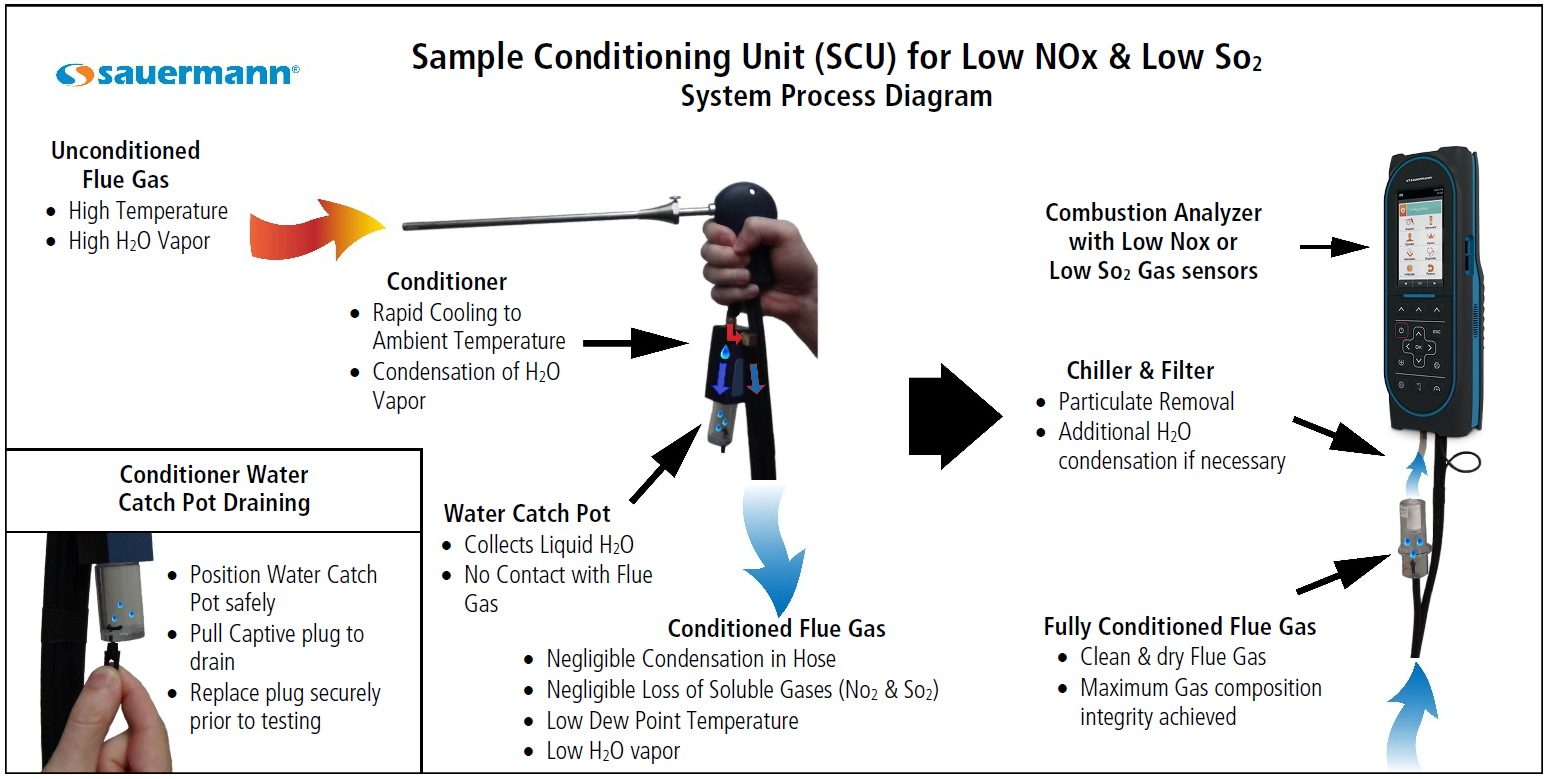

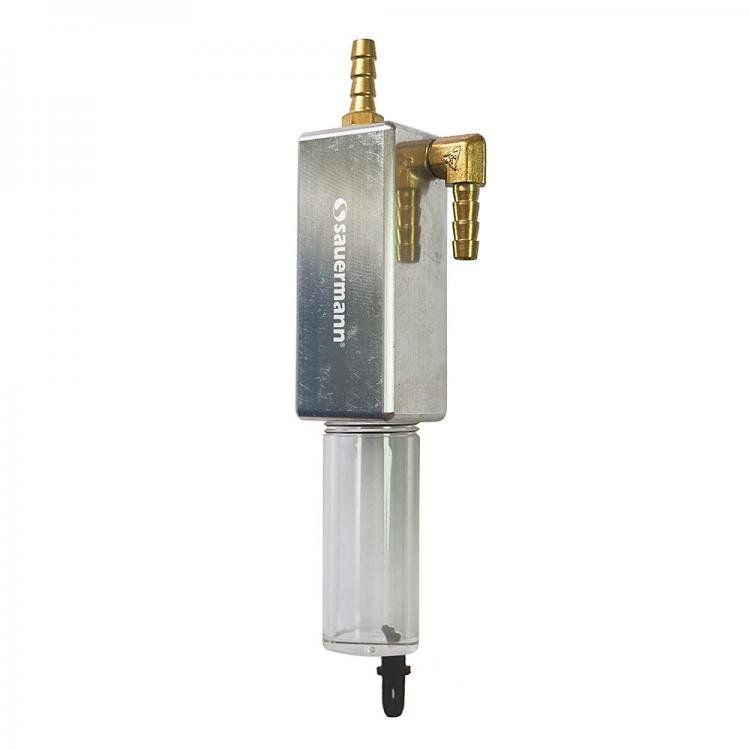

Ref: SCU
Sample Conditioning Unit mounted right at the sampling probe exit, where the water can rapidly condense and separate immediately from the gas therefore minimizing any contact of the target gases with the condensate.
An additional water trap commonly used with portable devices is then used to eliminate any water mist remaining in the gas as a protection for the sensors used in the analysers.
