Vane Thermo-Anemometer with integrated vane probe Si-VV3
Fast - Accurate - Robust

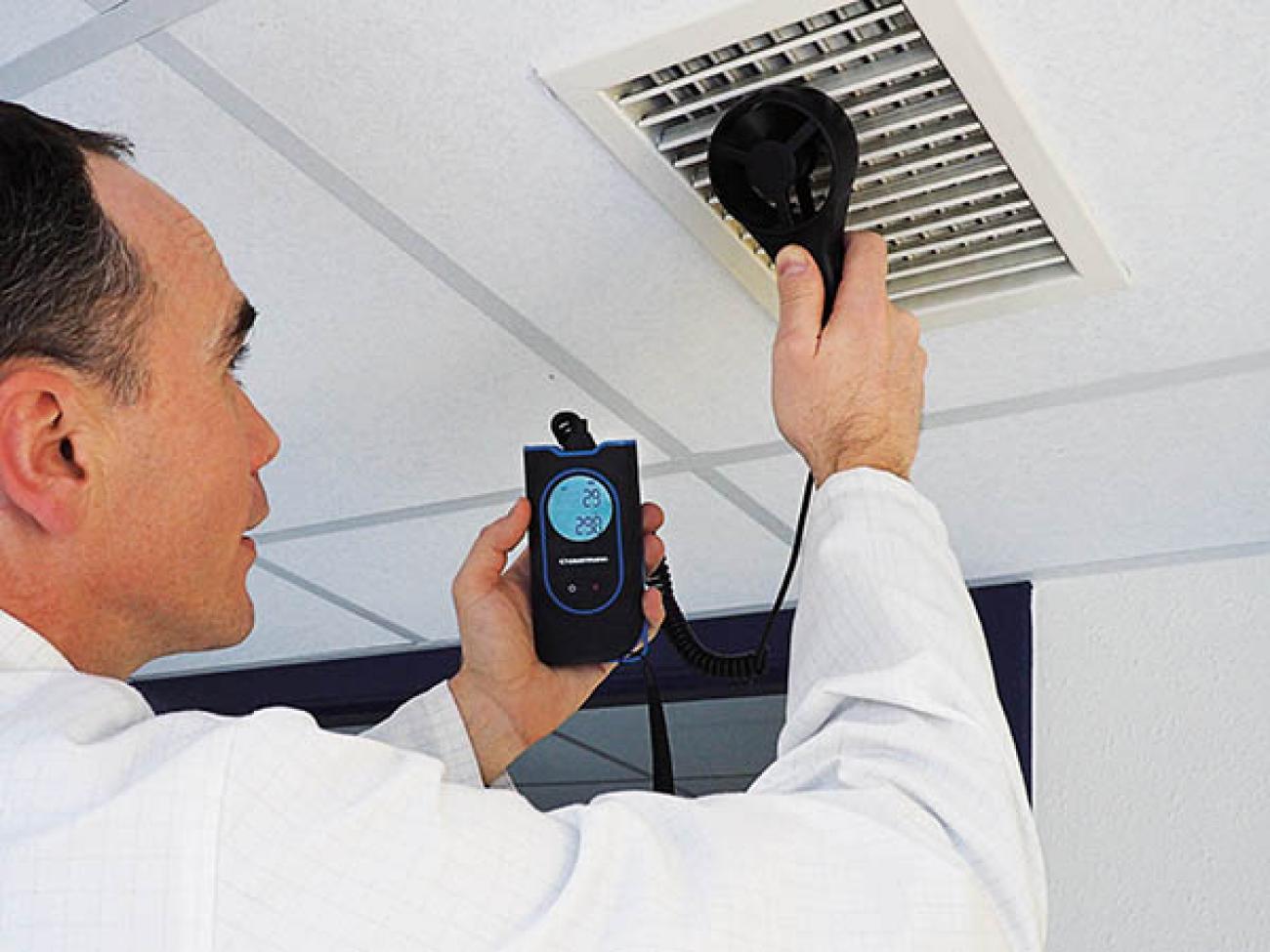

The hand held Si-VV3 vane thermo-anemometer easily measures wind speed, airflow, air velocity and temperature with its vane probe.
Applications:
Ideal for Hvac inspections and tests. Ideal to measure speed and airflow in air conditioning ducts or for environmental/meterological measurements of wind speed/velocity.
Measuring Units: °F, °C, m³/s, mph, m/s, m³/min, m³/h, km/h, fpm, cfm
Measuring Ranges
Air velocity 0.4 to 30.00 m/s
Airflow 0.00 m³/h ... 9999.00 m³/h
Temperature -10.00 °C to 60.00 °C
Supplied with
1 Certificate of conformity
1 Quick Start Guide
3 alkaline batteries LR03 AAA 1.5 V
1 Carrying bag.
| Technical Details | |
|---|---|
| Parameters | Air velocity Airflow Temperature |
| Display | 2-line display |
| IP Protection | 17 hours |
| Standards | 2011/65/EU RoHS II |
| 2012/19/UE DEEE | |
| 2014/53/EU RED | |
| Battery Life | 120 hours |
| Wireless Connection | 1 |
| Power Supply | 3 alkaline batteries LR03 AAA 1.5 V |
| Annemometer Type | Vane |
| Probe Type | Wire probe |
| Operating Temperature | |
| Storage Temperature | min -20.00 °C max 60.00°C |
| Dimensions | 70L x 33W x 151.2 |
| Weight | 318g |
| Parameters | Units | Accuracy | Range | Resolution |
|---|---|---|---|---|
| Air Velocity | m/s, km/h, fpm, mph ±(3% of value +0.1 m/s) from 0.4 to 3 m/s ±(1% of value +0.3 m/s) from 3 to 30 m/s ±( | ±(3% of value +0.1 m/s) from 0.4 to 3 m/s ±(1% of value +0.3 m/s) from 3 to 30 m/s ±(3% value +19.7 fpm) from 78.8 to 590.6 fpm ±(1% value +59.1 fpm) from 590.6 to 5905.5 fpm | from 0.4 to 30 m/s from 78.7 to 5905 fpm | 0.01 m/s from 0.4 to 5 m/s 0.1 m/s from 5 to 30 m/s 0.1 fpm from 0 to 984.2 fpm 1 fpm from 984.2 to 5905 fpm |
| Airflow** | m3/h, m3/min, m3/s, cfm | from 0 to 9999 m3/h from 0 to 9999 m3/min from 0 to 9999 m3/s from 0 to 9999 cfm | 1 m3/h 0.01 m3/min 0.001 m3/s 0.1 cfm | |
| Temperature | °C, °F | ±0.5°C ±0.9°F | from -10 to +60°C from 14 to 140°F | 0.1°C 0.1°F |
*All the accuracies indicated in the specification above were stated in laboratory conditions, and can be guaranteed for measurements carried out in the same conditions.
**Calculated value, only available on the app. Airflow is calculated with the surface given by the user. Accuracy of the result will depend on surface accuracy given by the user.
