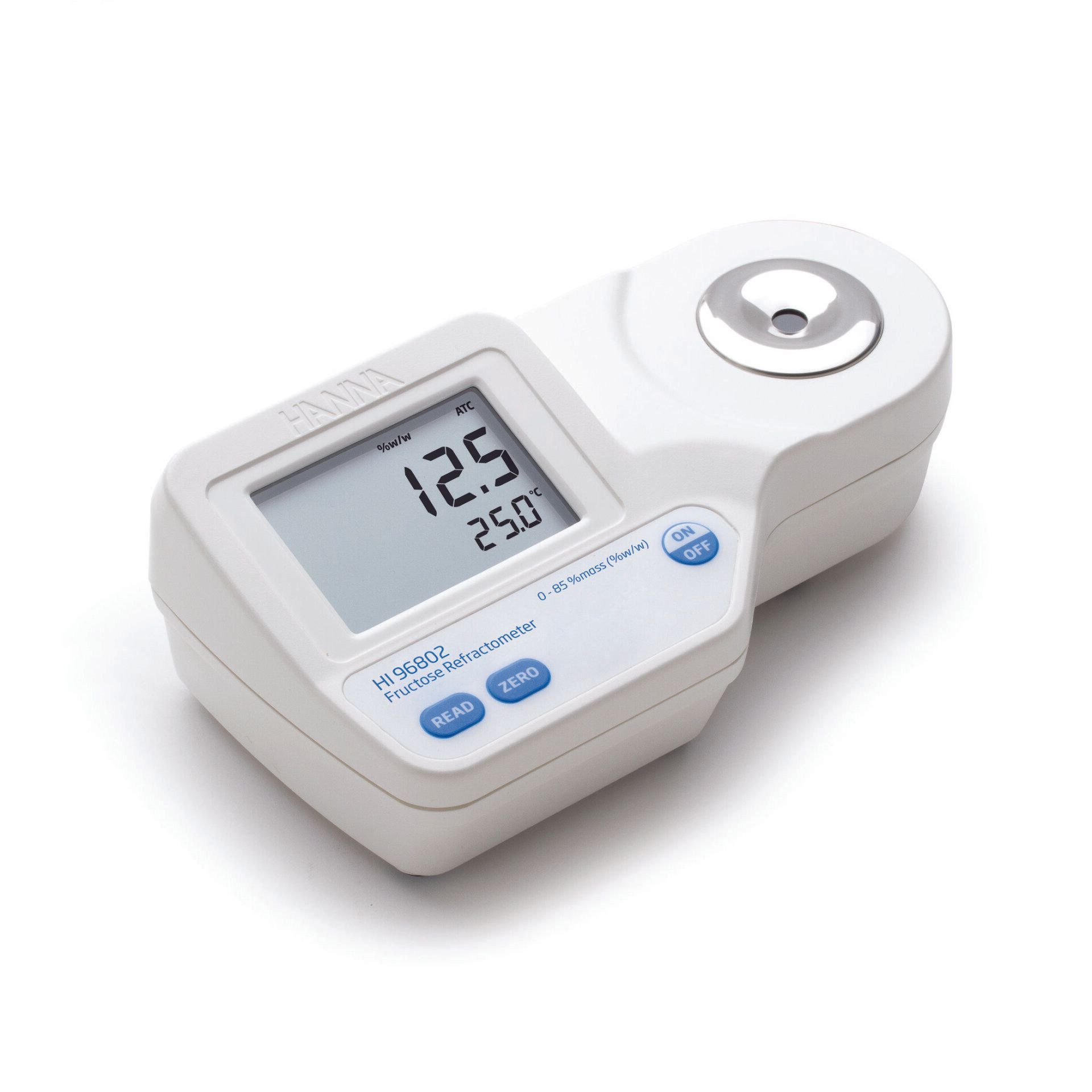

HI-96802 Refractometer for Fructose 0 to 85% scale

The HI-96802 measures the refractive index to determine the % fructose in aqueous solutions. The refractive index of the sample is converted to % mass (%w/w) concentration units.


Choose from five sugar refractometers to meet the requirements of the food industry. The HI-96800 Refractive Index/Brix, HI-96801 % Brix (sucrose), HI-96802 Fructose, Hi-96803 Glucose, and HI-96804 Invert Sugar digital refractometers are rugged, portable and water-resistant for measurements in the lab or field.


The HI-98602 is used across the food industry for measuring the % fructose in foods.

Quick and easy to use it is ideal for analysing the sugar content in a wide range of food products including fruit, energy drinks, puddings, tofu, jams, honey, soups and sauces.


Priced inexpensively does not mean a compromise on accuracy, the Hanna refractometer offers all the benefits of high precision digital technology at the same price as a mechanical model.

The HI-96802 measures the refractive index to determine the % fructose in aqueous solutions. The refractive index of the sample is then converted to % by weight concentration units.


Product uses

Fruit growers and importer

Fruit juice & drink manufacturers

Production of jams, preserves & sauces


Key features

White water resistant casin

Easy clean sample well

Zero using pure water

Battery operated with auto shut-off


Specifications
Range Sugar Content 0 to 85% (by weight)
Range Temperature 0 to 80°C (32 to 176°F)
Resolution Sugar Content ±0.1
Resolution Temperature ±0.1°C (0.1°F)
Accuracy (@20°C) Sugar Content ±0.2%
Accuracy (@20°C) Temperature ±0.3°C (0.5°F)
Temperature Compensation Automatic between 10 and 40°C (50 to 104°F)
Measurement Time Approximately 1.5 seconds
Minimum Sample Volume 100 µL (to cover prism totally)
Light Source Yellow LED
Sample Cell SS ring and flint glass prism
Auto Off After 3 minutes of non-use
Enclosure Rating IP 65
Battery Type/Battery Life 420g
Dimensions 192 x 102 x 67 mm (7.6 x 4 x 2.6")
Weight 420g
HI-96800 Refractometer

Battery powered – Allows use away from a power source. Batteries are included with all battery operated products.

HI-96800 Refractometer

Water Resistant – Can withstand temporary exposure to water, but should not be submerged or washed under running water.

HI-96802  Refractometer

Main benefits

  • 1.5 second measurement time
  • Direct readout in % Brix and °C
  • Automatic temperature compensation
  • No calibration solutions required
  • Large clear LCD display
