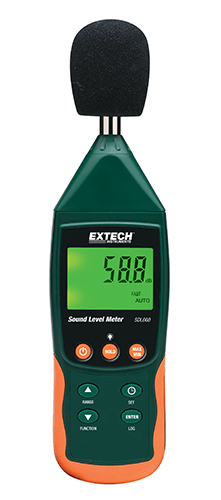

Sound Meter: Data Logging SDL600
Records data on an SD card in Excel® format
The SDL600 records data on an SD card in Excel format. High accuracy ±1.4dB meets ANSI and IEC 61672-1 Type 2 standards. 30 to 130dB measurement range. Auto or Manual ranging. AC analog output for connection to an analyzer or recorder. Large backlit LCD display. Stores 99 readings manually and 20M readings via 2G SD card. Datalogger date/time stamps and stores readings on an SD card in Excel format for easy transfer to a PC. User programmable sampling rate from 1 to 3600 seconds. Featuring Min/Max, Data Hold, and Auto Power Off functions. Complete with 6 AA batteries, SD Card, wind screen, and hard carrying case.
Features:
- High accuracy ±1.4dB meets ANSI and IEC 61672-1 Type 2 standards
- 30 to 130dB measurement range
- Auto or Manual ranging
- AC analog output for connection to an analyzer or recorder
- Large backlit LCD display
- Stores 99 readings manually and 20M readings via 2G SD card
- Datalogger date/time stamps and stores readings on an SD card in Excel® format for easy transfer to a PC
- User programmable sampling rate: 1 to 3600 seconds
- Min/Max, Data Hold, Auto Power Off
- Complete with 6 AA batteries, SD Card, wind screen, and hard carrying case
| Specifications | Range |
|---|---|
| Measurement Range | 30 to 130dB (3 ranges) |
| Basic Accuracy | ±1.5dB |
| Frequency Range | 31.5 to 8000Hz |
| Weighting | A and C |
| Response Time | Fast (125ms) / Slow (1s) |
| Memory | 20M data records using 2G SD card |
| Analog Output | AC |
| Dimensions | 9.8 x 2.9 x 1.9" (250 x 73 x 48mm) |
| Weight | 18.3oz (520g) |
Accessories:
407766: 94dB/114dB Sound Calibrator 1kHz Professional Calibrator for 0.5" or 1.0" Microphones
This 1kHz 94/114dB professional sound calibrator is for 0.5 in. or 1 in. microphones. Calibrates and verifies sound level meter operation. Level position switch to select 94dB or 114dB with power on LED indicator light. Durable die-cast aluminum housing generates a 1kHz sine wave at 94dB/114dB to an accuracy of 5% (frequency) and ±0.5dB (94dB)/±1.0dB (114dB). Meets IEC standard 60942 1997-11. Comes complete with two 9V batteries, carrying case and screwdriver
407744: 94/114dB Sound Calibrator 1kHz Professional Calibrator for 0.5" or 1.0" Microphones
his 1kHz, 94dB professional sound calibrator for 0.5" or 1.0" microphones calibrates and verifies sound level meter operation. Battery test position with battery status LED indicates if battery is good. Durable die-cast aluminum housing generates a 1kHz sine wave at 94dB to an accuracy of 5% (frequency) and ±0.5dB (94dB). Meets IEC standard 60942 1997-11. Complete with two 9V batteries, carrying case, and screwdriver.
