TM 4000 Series Digital Tachometers

High-Accuracy, High-Response Rotation Speed Measurement Instruments

TM  Series Tachometer from Ono Sokki
TM Series Tachometer for measuring rpm

The Ono Sokki TM-4000 Series delivers precise rotational speed measurement across a wide frequency range with exceptional accuracy and response time. Engineered for professional measurement, monitoring, and control applications, the TM-4000 Series achieves high-speed signal processing, enhanced linearity, and superior display visibility — making it ideal for industrial automation, R&D testing and production quality control.


Outstanding Accuracy and Fast Response

The TM-4000 Series offers high-accuracy rotation measurement with fast update rates.
For analog output models, linearity has been improved to
0.1% of full scale, and the output refresh time reduced to 1 ms, enabling high-precision equipment monitoring and highly responsive control.


The input circuitry supports a wide range of signal types:

  • Sine wave inputs from 1 Hz to 100 kHz
  • Square wave pulses from 0.05 Hz to 100 kHz
  • Minimum detectable pulse width: 4 μs


This ensures compatibility with a variety of sensors and rotary encoders used in speed, displacement, and position measurement applications.


Flexible Configuration and Ethernet Connectivity

Each TM-4000 model can be customised to suit different system configurations and external interfaces.
Available options include:

  • Voltage input
  • Comparator output
  • DC power supply
  • Ethernet communication (optional) for factory network integration and data management.


This flexibility enables seamless integration into modern automated systems and networked production environments.


Improved Noise Immunity

A selectable low-pass filter (OFF / 100 Hz / 20 kHz) is provided to reduce signal noise and improve stability.


Auto-Zero Function

The auto-zero time range is 0.0 s (OFF) – 20.0 s in 0.5-second increments, allowing precise control over measurement reset timing.  (Standard on TM-4100 and TM-4200 models.)


Rapid Deceleration Tracking

During periods when the measured value reaches zero within the auto-zero time setting, the TM-4000 performs deceleration calculations every 1 ms or holds the last valid reading.
This ensures accurate tracking of rapidly changing rotational speeds.  (Standard on TM-4100 and TM-4200 models.)



Key Features & Benefits

  • Dual-mode measurement
    The TM-4000 supports both non-contact optical and contact measurement modes. Switch easily between optical probes and contact adapters to suit your application needs.


  • Wide speed range & high accuracy
    Measure from low RPMs up to high rotational speeds (depending on model and probe) with precision. Typical accuracy is
    ±0.02% of reading ±1 digit, ensuring dependable measurements across the scale.


  • Multiple display units
    Display speed as
    rpm (revolutions per minute), rps (revolutions per second), surface speed (m/min, ft/min), frequency (Hz), or count — all at the press of a button.


  • Large, backlit LCD display
    An easy-to-read, clear screen shows current, maximum, minimum, and average values. The backlight ensures visibility even in dimly lit environments.


  • Data output & connectivity
    Models are available with
    USB or analog (voltage/current) outputs so that real-time measurement data can be logged, recorded, or fed into external analysis systems.


  • Durable, portable design
    The TM-4000 unit is rugged enough for field or shop-floor use while being compact and battery-powered for portability.


  • Memory & statistics
    Cap
    ture maximum, minimum, and average values over a measurement session. Some models support data logging or snapshot capture for quality control or diagnostic review.


Typical Applications

The TM-4000 Series is trusted across industries for applications including:


  • Rotational speed measurement of motors, fans, pumps, and turbines
  • Surface speed and linear velocity measurement of belts, rollers, and conveyors
  • Preventive maintenance and equipment diagnostics
  • Quality control in manufacturing and test labs
  • Research and development, including machinery prototyping
  • Calibration checks and cross-verification of other tachometers


Why Choose the TM-4000?

  • High measurement integrity: trusted precision and repeatability from Ono Sokki
  • Versatility: dual-mode measurement and multiple data outputs
  • Robustness: built for field, workshop, or lab use
  • Local support: full support inside Ireland
  • Seamless integration: the TM-4000 works with data acquisition systems, controllers, and test benches



Supplied By Techris Systems

At Techris Systems, we proudly supply the full range of Ono Sokki TM Series Tachometers and compatible sensors. We offer tailored solutions for everything from routine maintenance to complex rotational analysis, with a commitment to precision, reliability, and customer support.


Explore our full range of tachometers here


New to tachometers? Click here to learn more about what they do and how they’re used


TM-4000 Series Model Overview

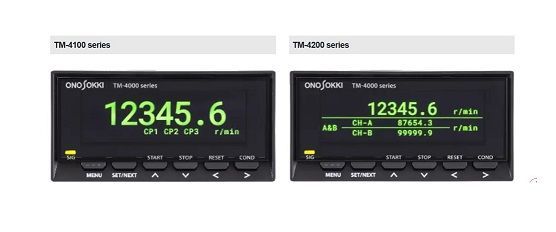

TM-4110 / TM-4111 – Standard Display Models

Basic display-only units for direct readout of rotational speed and frequency. Ideal for standalone or portable use.


TM-4120 / TM-4121 – BCD Output Models

  • 6-digit BCD output with open-collector signal, directly connectable to PLCs.
  • Two output modes: continuous (interval refresh) or request-based (on-demand) for flexible integration.


TM-4130 / TM-4131 – Analog Output Models

  • Selectable voltage or current output
  • 1 ms refresh time for rapid signal update
  • Linearity: ±0.1% FS (voltage), ±0.1% of span (current)

Ideal for feedback control, monitoring, and analogue data acquisition systems.


TM-4140 / TM-4141 – Comparator Output Models

  • Equipped with three contact outputs
  • Independent evaluation conditions for each output
  • Comparison cycle every 1 ms
    Perfect for alarm, limit, and event-triggered control applications.


TM-4270 – Two-Channel Calculation Model

  • Wide input range: 0.05 Hz to 100 kHz
  • Supports advanced calculations:
  • Rotation difference
  • Rotation ratio
  • Rate of change
  • Rotation direction
    Enables comparative or dual-shaft analysis.

TM-4370 – Reversible Counter Model

  • Measures linear position, displacement, and dimensions
  • Input frequency: DC to 100 kHz
  • Reversible counter range: ±2,000,000,000 counts
  • Includes multiplication (×1/×2/×4) and count direction switching functions.


TM-4470 – Passing Speed Calculation Model

  • Calculates passing speed based on distance and time between two points
  • User-definable distance settings
  • Passing-time resolution: 1 μs
  • Configurable pulse detection (HIGH/LOW level, rising/falling edge)
    Ideal for conveyor, line, and production testing applications.

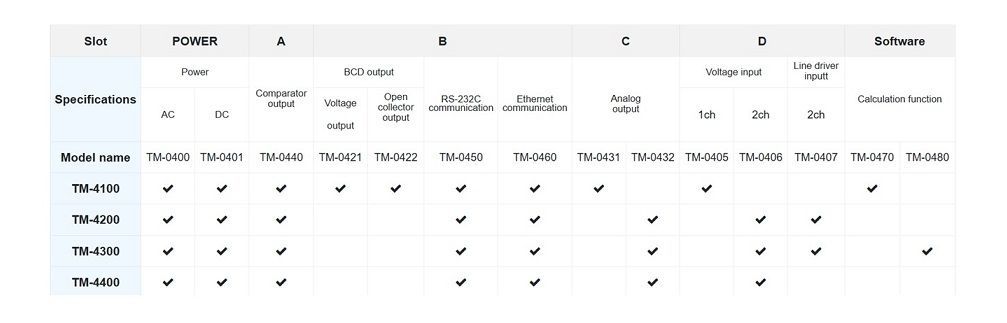

Table of Optional Boards/Software Combination

Specifications for the TM4000 series tachometers from Ono Sokki

Product lineup selecting from 4 models

TM4000 Series tachometers from Ono Sokki

1-channel input for basic measurement

compatibility with the existing models. You can use your current detectors, cables, and mounting jigs as they are.



2- channel input for measurement of rotation speed differences/rotation speed ratio

Accurate quality inspection and machine control with 1 ms high speed sampling.

TM4000 Series tachometers from Ono Sokki

Reversible Counter for multiplication/addition/subtraction

Wide accumulated pulse counts and 7 digit display for line control such as accurate positioning and winding length measurement.


Passing Time/Passing Speedometer

Measureable cycle from 0.1 ms to 3600s Simultaneous measurement of passing time and passing speed between two points.

FEATURES


Tachometer with Multiple Sensor Connections


Can be connected to a variety of sensors
