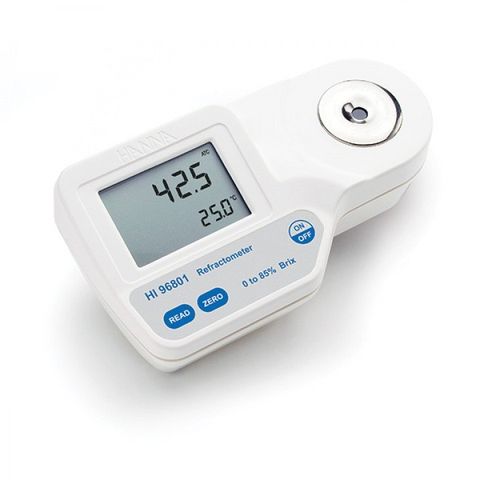

HI-96801 Refractometer for General Purpose Sugars

The HI-96801 measures the refractive index to determine the % Brix of sugar in aqueous solutions. The refractive index of the sample is converted to % Brix concentration units.


Choose from five sugar refractometers to meet the requirements of the food industry. The HI-96800 Refractive Index/Brix, HI-96801 % Brix (sucrose), HI-96802 Fructose, Hi-96803 Glucose, and HI-96804 Invert Sugar digital refractometers are rugged, portable and water-resistant for measurements in the lab or field.



The HI-98601 is used across the food industry for measuring the concentrations of general purpose sugars in foods.

Quick and easy to use it is ideal for analysing the sugar content in a wide range of food products including fruit, energy drinks, puddings, tofu, jams, honey, soups and sauces.


The HI-96801 measures the refractive index to determine the % Brix of sugar in aqueous solutions. The refractive index of the sample is then converted to % Brix concentration units.


Product uses

Fruit growers and importer

Fruit juice & drink manufacturers

Production of jams, preserves & sauces



Key features

White, water resistant, casing

Easy clean sample well

Zero using pure water

Battery operated with auto shut-off


Specifications
Range 0 to 85% Brix / 0 to 80°C (32 to 176°F)
Resolution ± 0.1% Brix / ±0.1°C (±0.1°F)
Accuracy ± 0.2 % Brix / ± 0.3°C (±0.5°F)
Automatic Temperature Compensation between 10 and 40°C (50 - 104°F)
Measurement Time Approximately 1.5 seconds
Minimum Sample Volume 2 metric drops
Light Source Yellow LED
Sample Cell Stainless steel ring and flint glass prism
Case Material ABS
Enclosure Rating IP65
Battery Type (1) 9V / 5000 readings
Auto Off After 3 minutes of non-use
Dimensions 19.2(W) x 10.2(D) x 6.7 (H)cm
Weight 420g
Battery Type Life (1) 9V / 5000 readings
Auto-off After 3 minutes of non-use
Dimensions 19.2(W) x 10.2(D) x 6.7 (H)cm
Weight 420g
HI-96800 Refractometer

Battery powered – Allows use away from a power source. Batteries are included with all battery operated products.

HI-96800 Refractometer

Water Resistant – Can withstand temporary exposure to water, but should not be submerged or washed under running water.

HI-96801  Refractometer

Main benefits

  • 1.5 second measurement time
  • Direct readout in % Brix and °C
  • Automatic temperature compensation
  • No calibration solutions required
  • Large clear LCD display
