Mass Flow Measurement Systems for the Automotive Car Industry

Combines Flow Detectors and Fuel Density Meter

By combining the volumetric flow detectors and the fuel density meter FD-5110 to measure flow rate and density, this enables continuous mass flow measurement.

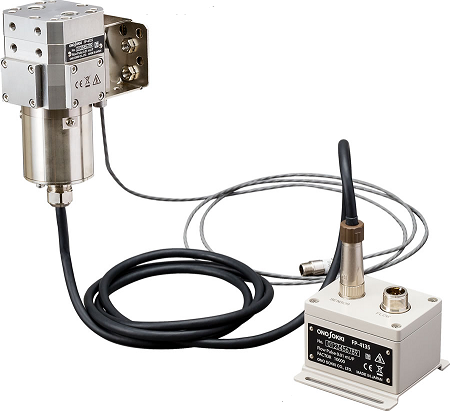

In engine evaluations such as emission mode tests and transient tests for performance evaluation, the evaluation methods have been shifting from steady-state tests to transient tests. In the evaluation of fuel consumption, the requirement for evaluating the fuel consumption characteristics in transient duration has been increasing as well as the total fuel consumption for each mode. The FP-5000 series has achieved high pulse resolution and wide measurement range. It enables to detect changes in the flow rate effectively and responsively, and measure large flow rate. It can be used when the flow rate increases, such as when measuring alcohol fuel.


By connecting with the FM-3100 Digital Flow Meter, the FD-5110 Fuel Density Meter can measure temperature and density data in real time. In addition, the FP series Volumetric Flow Detectors with wide range ability and the FD-5110 are the best choice for achieving the accurate mass flow measurement.


In the field of engine development, it is increasing the requirement for improving the accuracy of the measurement in the small flow rate range, and evaluating the fuel consumption characteristics in transient duration. The FM-3100 enables to meet various requirements in that field.

Measure flow Rate in Engines
